PRIMARY DWELLING
Tenby Point | Westernport | Bunurong Country
Originally a granny flat located 100kms away, this 50m2 timber building with a big verandah has been opened up to become a contemporary permanent residence, that’s filled with sun in the winter and makes a cool retreat in summer.

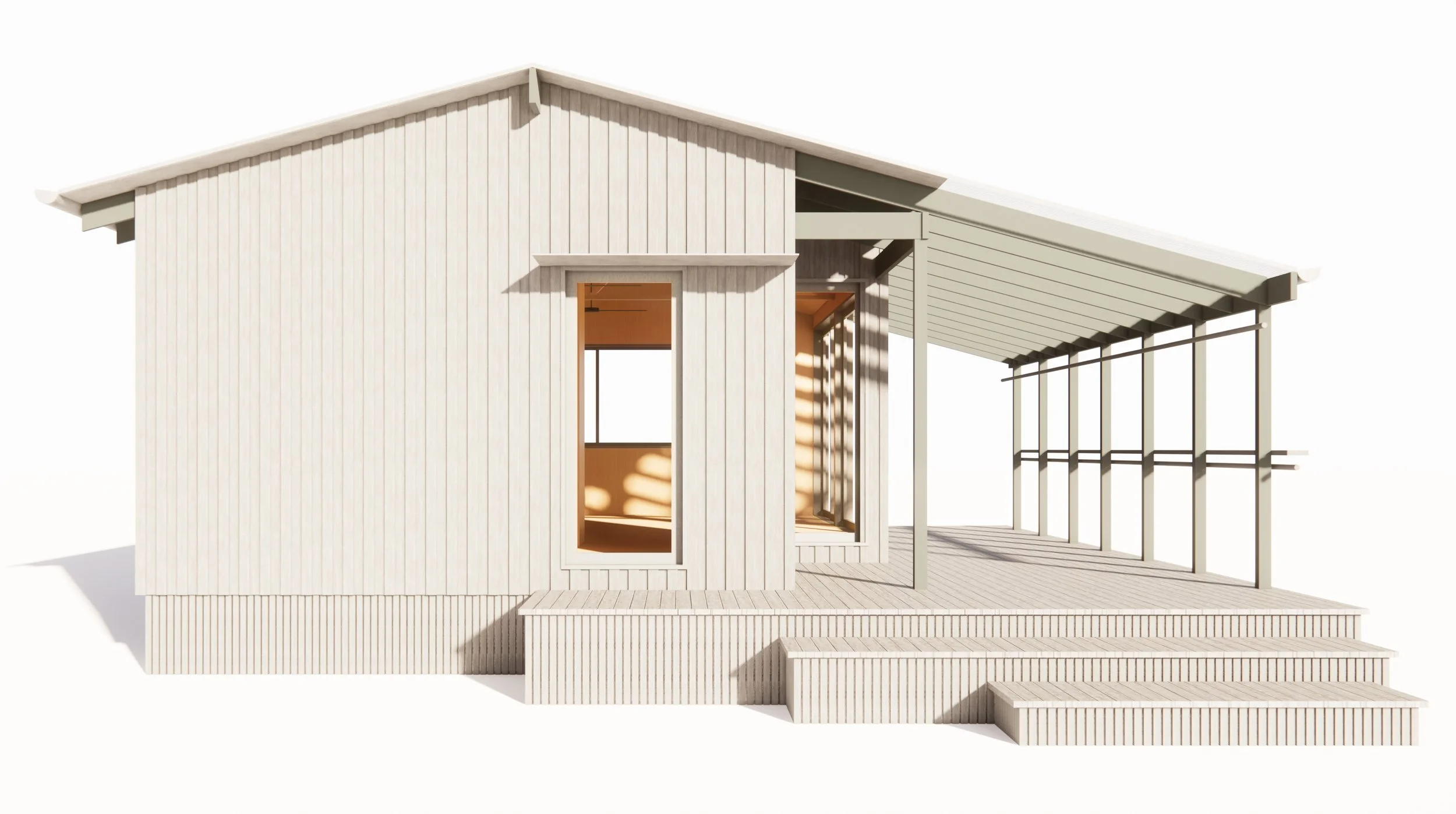

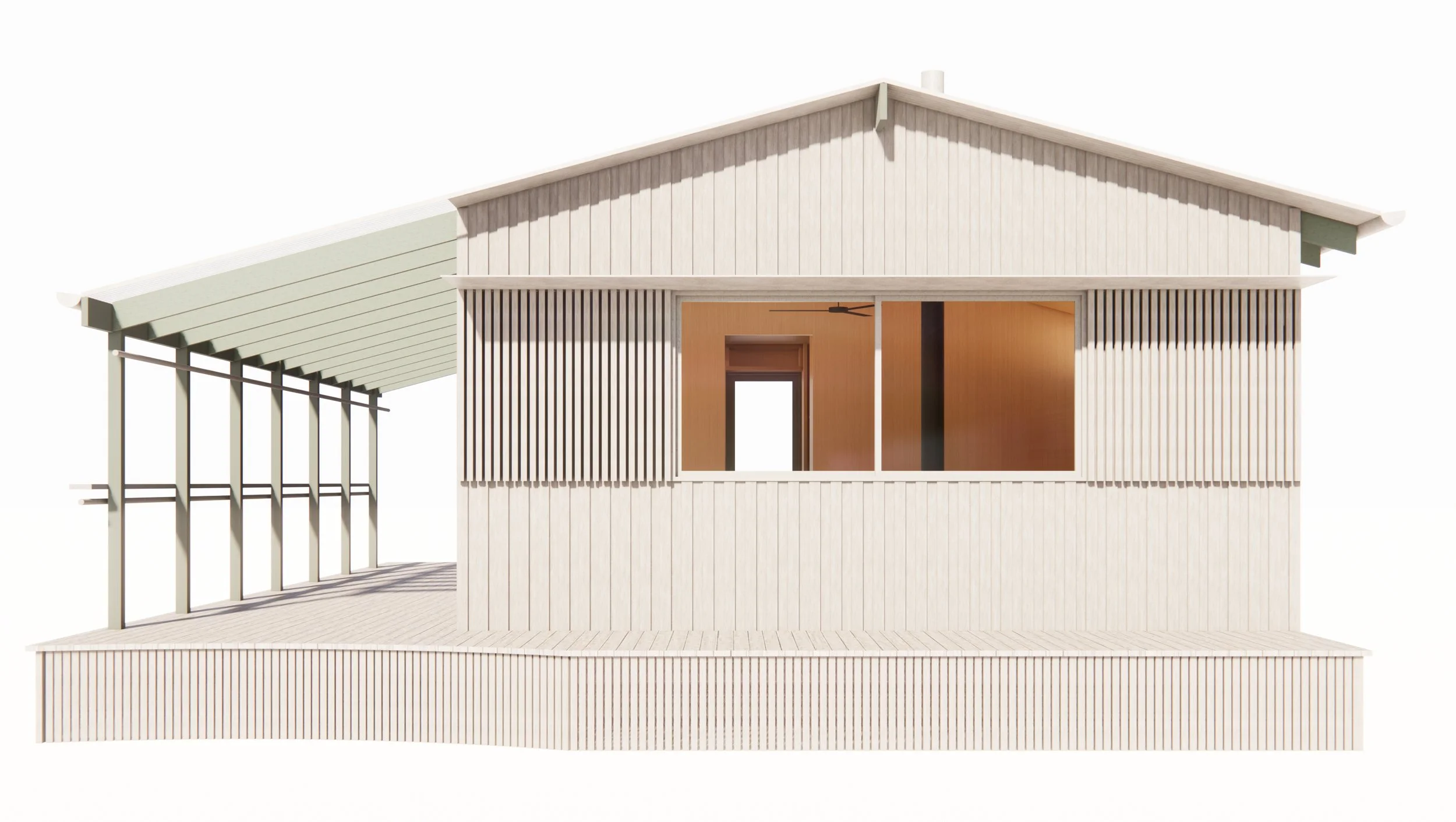

The existing 1970s building is newly clad in hardwood to connect to its bush context, the interior is modified to become a one room timber cabin, and windows, insulation and building services are upgraded to contemporary energy efficiency standards.

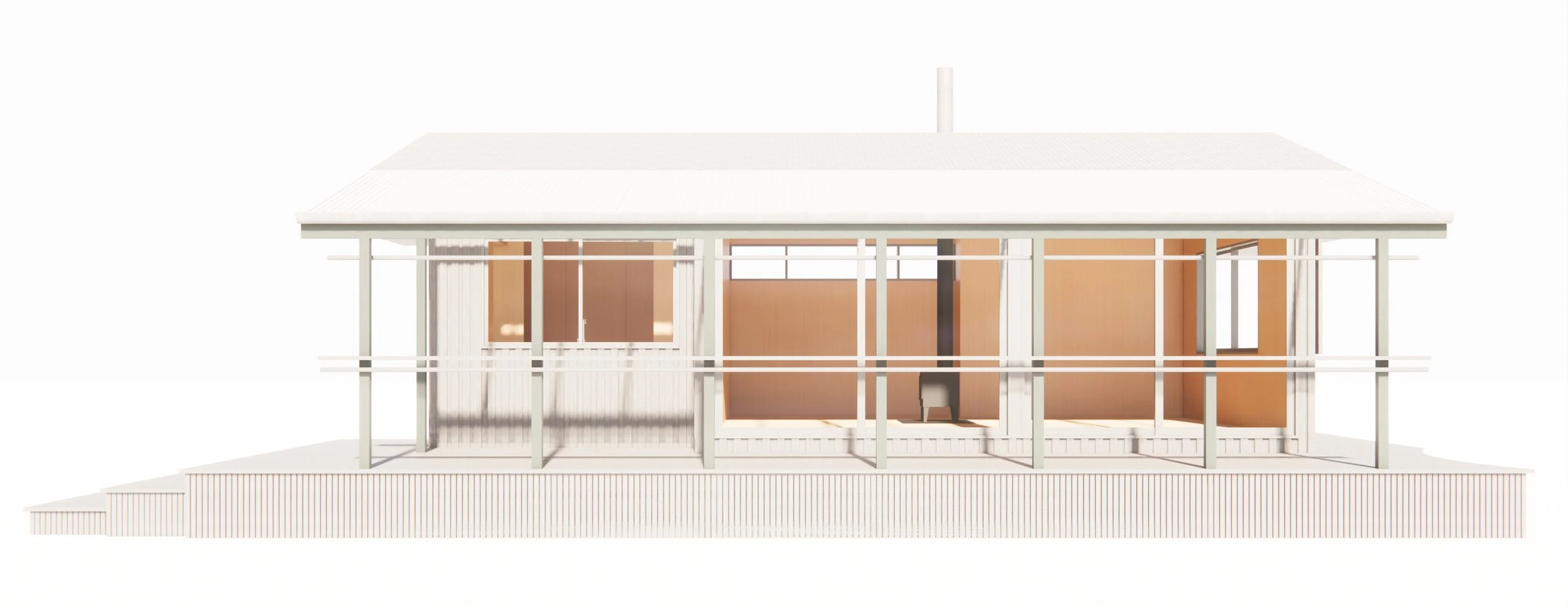

The large verandah roof is converted to a translucent canopy with seasonal shading, to maximise sunlight and warmth in winter and maintain generous shade in summer.
PROJECT SUMMARY
– Original small building footprint and 1970s hardwood house framing retained
– Passive solar design (natural heating and cooling)
– New galvanised steel roof and board and batten timber wall cladding
– New architectural double glazed timber windows with mesh bushfire screens
– New high-performance thermal insulation and building wrap

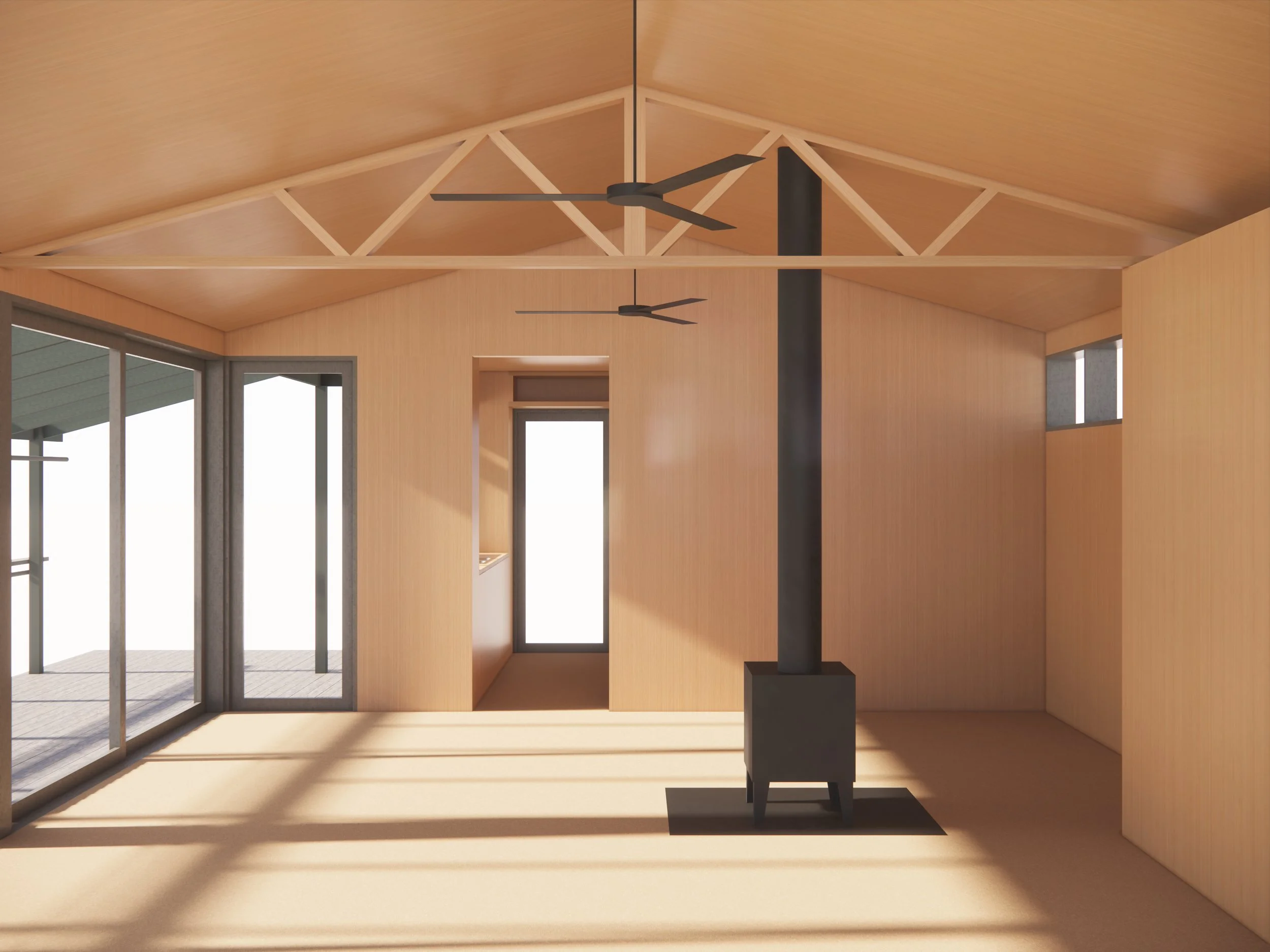

– Internal bedroom walls removed to create one generous room
– New cork flooring and plywood wall and ceiling lining

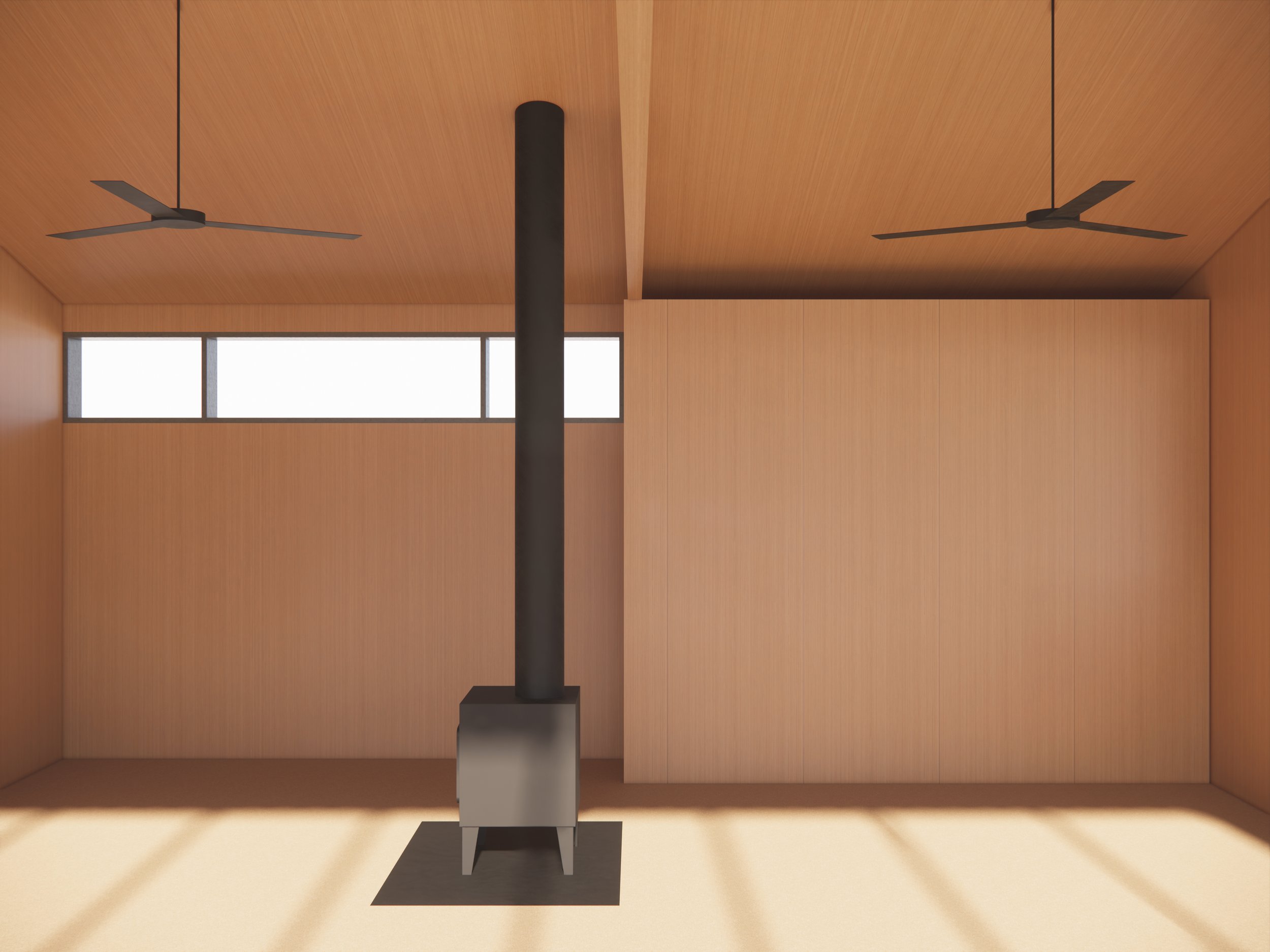

– New wood burner and ceiling fans
– New external shutters to west facing windows

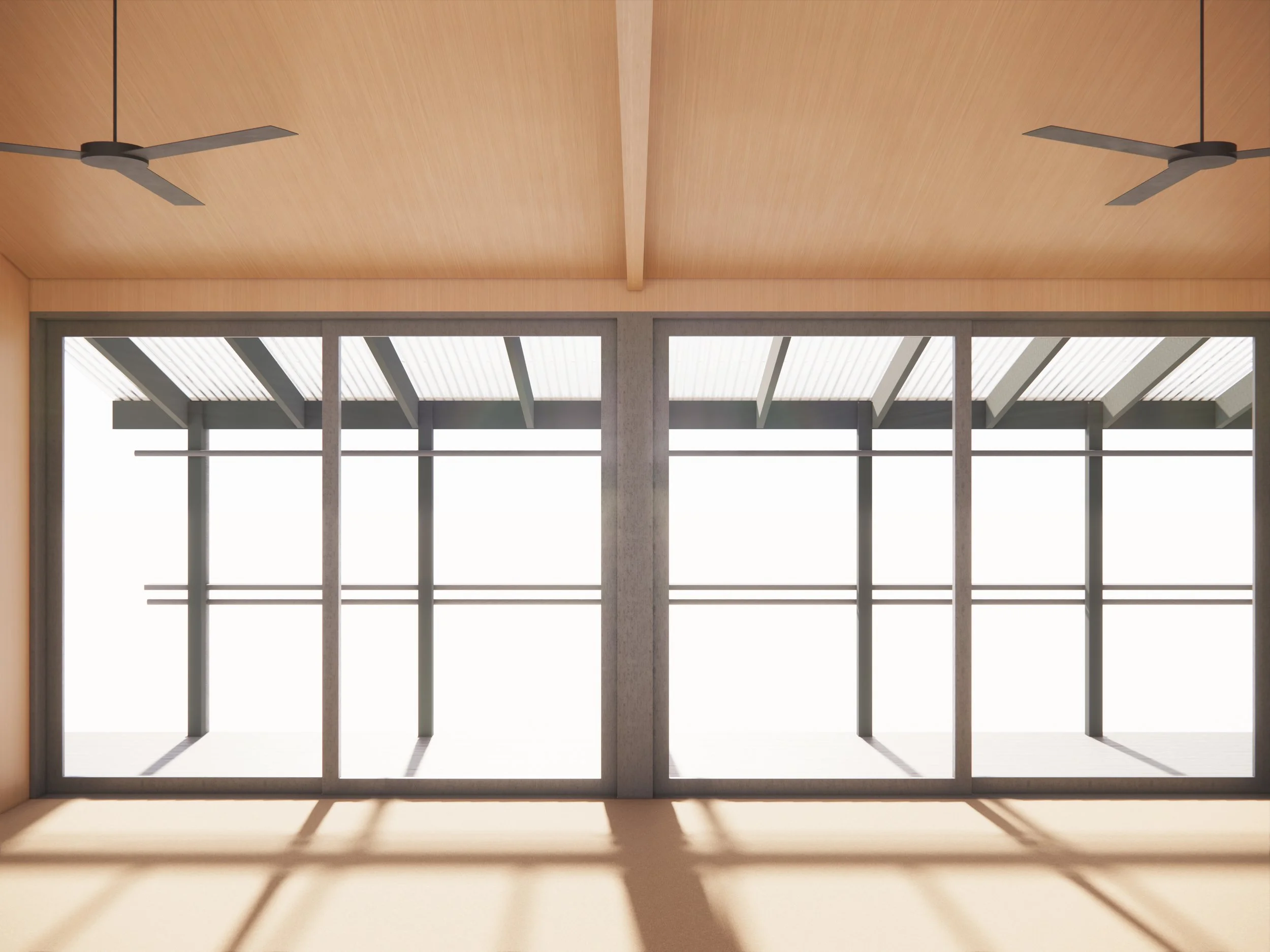

– New translucent roof and seasonal shading to existing verandah
– New recycled timber cabinetry and stainless steel plumbing fittings
– Designed to bushfire attack level BAL-19
